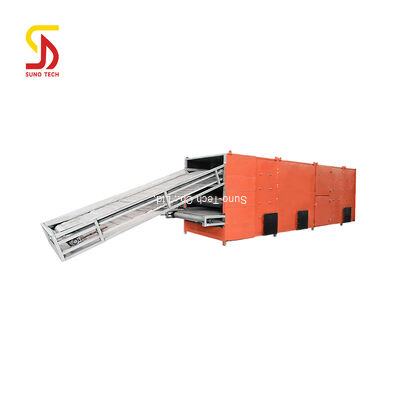

Automatic Energy Saving Multifunctional Mesh Belt Dryer Continuous Mesh Belt Drying Machine
| MOQ: | 1Set |
| Price: | $19999-69999/sets |
| Standard Packaging: | 20GP/40GP/40HQ |
| Delivery Period: | 25-35 work days |
| Payment Method: | L/C,D/P,D/A,T/T,Western Union |
| Supply Capacity: | 1Sets/28 |
Detail Information
Place of Origin
HENAN,CHINA
Brand Name
SUNO
Certification
CE
Model Number
SN-RD-1100
Key Selling Points:
Automatic, Multifunctional, Energy Saving, Other
Machinery Test Report:
Provided
Function:
Food Vegetable Fruit Dehydrator
Advantage:
Easy Operation High Efficiency
Capacity:
Customers' Requirements
Highlight:
Continuous Mesh Belt Drying Machine
,Multifunctional Mesh Belt Drying Machine
,Energy Saving Mesh Belt Dryer
Product Description
Multilayer Mesh Belt Dryer
Advanced continuous mesh belt drying machine designed for efficient processing of various materials including coca, wolfberry, and other industrial products.
Product Specifications
| Type | Mesh Belt Dryer |
| Heating Method | Gas Heating, Electric Heating, Heat Pump, Other |
| Material | SUS304, SUS304L, SUS316, SUS316L, Other |
| Core Components | Bearing, Gear, Motor, PLC, Other |
| Application | Chemicals Processing, Food Processing, Other |
| Voltage | 380 V |
| Power | 5.5 kW |
| Key Selling Points | Automatic, Multifunctional, Energy Saving, Other |
| Quality Assurance | Video Outgoing-Inspection Provided |
| Place of Origin | Henan, China |
| Dimensions (L*W*H) | 11000 * 2200 * 2400 mm |
Structural Components
Feeding System
Automatic or manual feeding device evenly spreads materials to be dried onto the mesh belt.
Mesh Belt
Constructed from stainless steel or alloy materials, resistant to high temperatures and corrosion, ensuring material hygiene and safety during the drying process.
Drying Chamber
The main body features a sealed structure with multiple hot air circulation systems inside, ensuring uniform distribution of hot air. Multiple layers of mesh belts can be installed within the drying chamber to enhance drying efficiency.
Heating System
Select from electric, gas, or steam heating based on requirements, ensuring rapid temperature rise.
Exhaust System
Equipped with fans and exhaust ports to promptly remove moisture and maintain unobstructed airflow within the drying chamber.
Control System
PLC-based automatic control system enables precise regulation of temperature, time, and mesh belt speed. Optional touchscreen interface available.
Working Principle
The mesh belt dryer operates by conveying materials into the dryer through the mesh belt system. Hot air is evenly distributed through air ducts into the drying chamber, where it contacts the materials and removes moisture. As materials move forward on the mesh belt, they reach the required dryness level after a specific period and are finally discharged through the output system.
Key Advantages
- High-Efficiency Drying: Utilizes heat exchange between hot air and materials, significantly reducing drying time
- Continuous Operation: Materials move continuously on the mesh belt, ideal for high-volume production and improved efficiency
- Wide Applicability: Suitable for various materials including granules, flakes, and strips, particularly for products with strict drying requirements
- Precise Temperature Control: Advanced temperature control system ensures uniform drying and prevents overheating or uneven results
- Energy-Saving & Environmental: Hot air circulation system minimizes energy waste, with optional moisture recovery for enhanced efficiency
Industry Applications
Belt dryers are widely used across multiple industries due to their highly efficient and uniform drying performance:
- Food Industry: Fruit and vegetable dehydration, grain drying, meat and fish products, seasonings and spices
- Chemical Industry: Chemical granules and powders, plastic pellets, paints and adhesives
- Pharmaceutical Industry: Herbal drying, formulation drying, biological products
- Agriculture & Feed Industry: Animal feed drying, crop drying
- Wood Industry: Wood drying to prevent cracking and warping
- Textile Industry: Fabric drying, nonwoven fabric processing
- Environmental Protection: Sludge dehydration from wastewater treatment
- Electronics Industry: Battery material drying for lithium batteries
- Other Industries: Paper industry, building materials, and concrete additives
